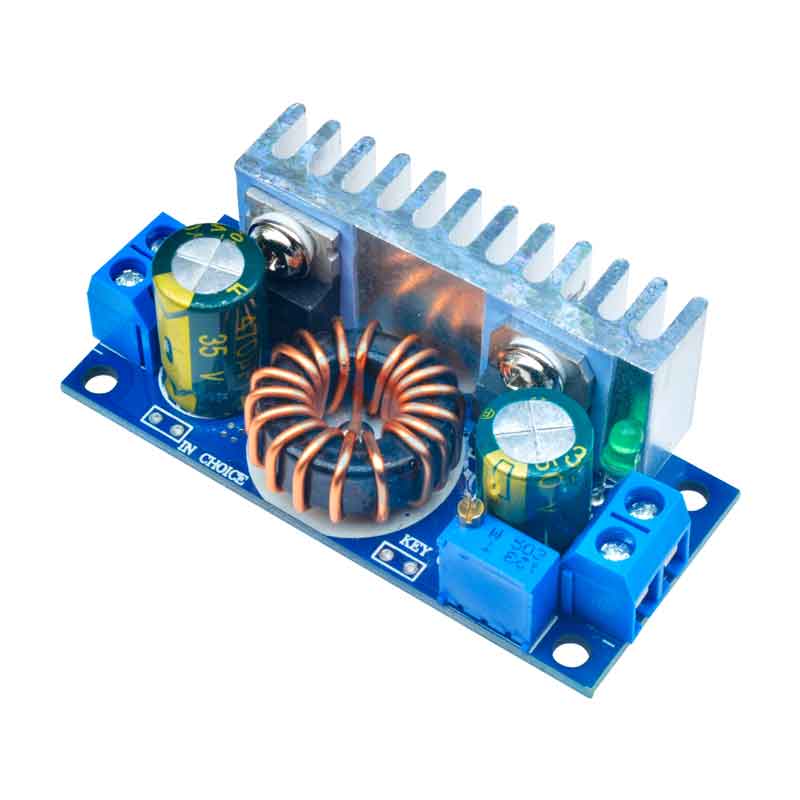

DC-DC Step up Booster Power supply Converter Module Boost Board Voltage Converter dc-dc Boost Transformers Module

super current carrying capacity (maximum 8 A), to provide the strong power to your device!

Tight layout, limited space for you to make the biggest concessions

Additional radiator, no longer worry about equipment and higher temperature

Scope of application:

Can be used as a solar battery charging modules, constant voltage charging of battery group

As the vehicle power supply, for your laptop or power supply all kinds of digital products

Can serve as your car communication powersupply, no longer worry about without 24 power supply

Relevant parameters:

The isolation booster module

The highest conversion efficiency:96%

Input voltage:6~32max 35V

Output voltage: 6~42max 52V

Maximum input current: 8A

maximum current output: 5A

Static working current: 15mA

Power :70W

To adapt to the environment:-40~+85°

Working frequency: 150KHz

Characterization:

Adopt high-frequency electrolytic capacitor reduce the ripple value, more stable output voltage;

Provide reverse connect protection, avoid the equipment damage caused by incorrect operation;

Stops booster, soft short circuit protection, short circuit, automatic recovery when short circuit faults remove;

With access to electricity, the LED indicator light, easy to understand

way to install:4*M3 screw

Connection mode: welding output terminals free

Module size: 30 mm high 20 mm long 60 mm wide

Note:
The input voltage is greater than 5 v, only is greater than the start voltage to work properly;
Input current is greater than 1 a, the input current is too small easy to cause the power short circuit alarm by mistake;
Should be fixed to use, to prevent improper operation to get an electric shock
