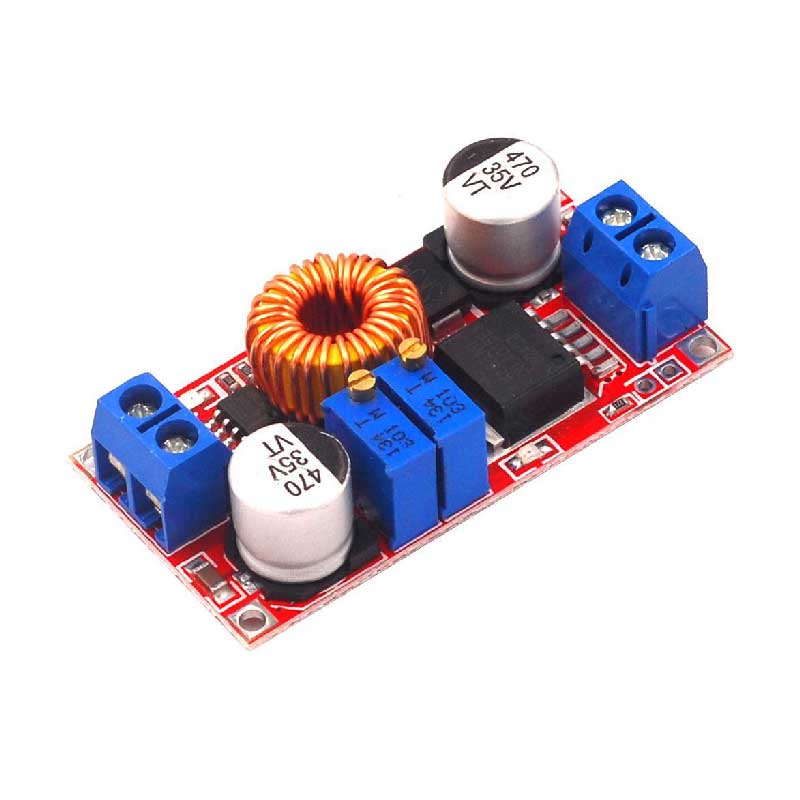

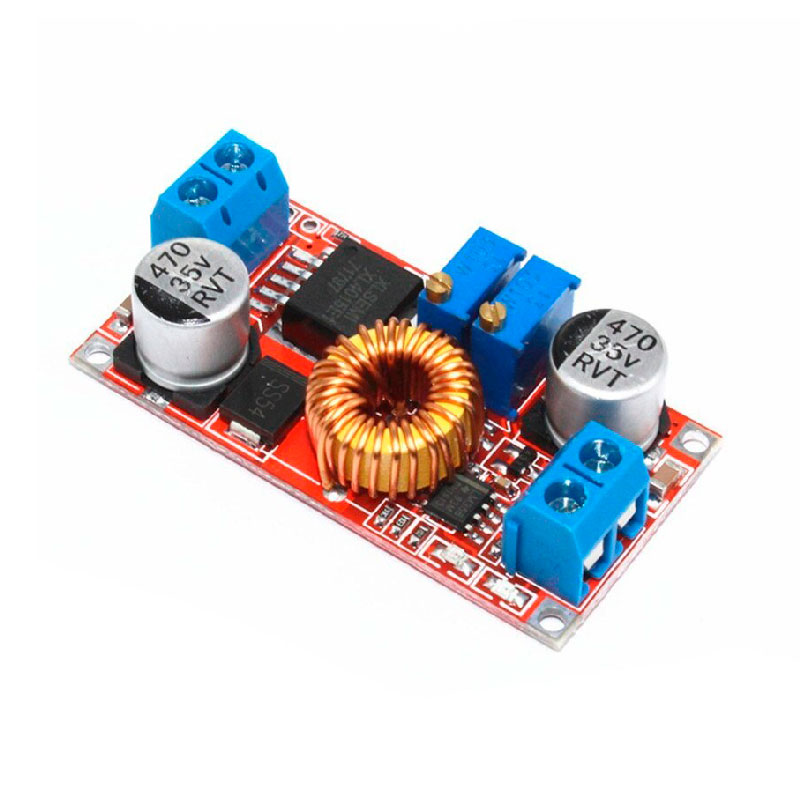

5A Max Step-Down Buck Charging Board XL4015 ADJ Lithium Battery Charger Converter Module DC-DC 0.8-30V To 5-32V 5A Step Down CC

240

  • Size: 51 * 26.3 * 14 (L * W * H) (mm)
  • Output current: adjustable maximum 5A
  • Output voltage: 0.8V-30V
  • Input voltage: 5V-32V
SKU: 16848 Category:
Description

5A Max Step-Down Buck Charging Board XL4015 ADJ Lithium Battery Charger Converter Module DC-DC 0.8-30V To 5-32V 5A Step Down CC

This linear module has constant voltage and constant current function (CC CV). and it has a good performance. When you use it as a charger. this module use good chip as core and it is stable. also its ripple is low to 50mV.



  • Size: 51 * 26.3 * 14 (L * W * H) (mm)
  • Operating Temperature: -40 ° to +85 °
  • Voltage Regulation: ± 2.5%
  • Output ripple: 50mV (max) 20M bandwidth
  • Switching frequency: 300KHz
  • Conversion efficiency: 95% (the highest)
  • Output current: adjustable maximum 5A
  • Output voltage: 0.8V-30V
  • Input voltage: 5V-32V
  • Rectification: non-synchronous rectification
  • Module Properties: non-isolated constant current and voltage module.
  • CC CV Low ripple
  • When the module charges a battery, it first use constant current to protect the battery. check the curse above.

Package Included:

  • 1PCS* 5A Lithium Charger Step down 5A 5V-32V to 0.8V-30V Power Supply Module LED Drive
